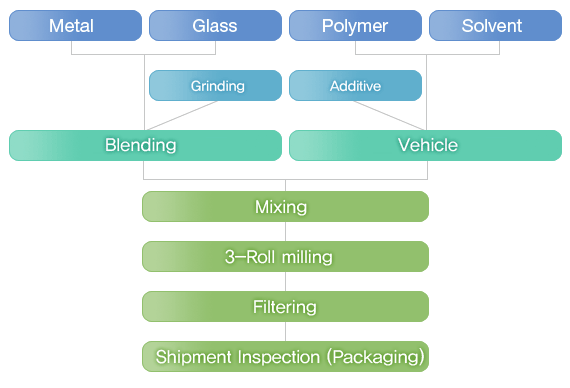

| 1. Raw Material Inspection: Inspection of Composition Table and General Property of Matter |
| It is to confirm tap density, none surface size, granularity distribution of Metal which determines viscosity (liquidity) and electric & mechanic characteristics of Paste, and to inspect the shape of powder by Scanning Electron Microscope (SEM).
Polymer (Binder) shall be tested for viscosity and the level of melting viscosity.
|
| 2. Raw Material Process: Glass Grinding, Vehicle Manufacturing |
| Glass Grinding: Process shall be made by Ball mill with combined Frit to meet the characteristics.
Vehicle Manufacturing: It shall be made in reactor with injection of Polymer, Solvent and additive.
|
| 3. Paste Average Quantity: Measuring shall be made in designated vessel by order listed on the Work Sheet. |
| 4. Paste Agitation |
| The paste agitation shall be made by the mixer in order of Vehicle, Metal and other additive to promote productivity and effectiveness of milling process. |
| 5. Paste Milling |
| Mixed Paste shall be milled by 3-Roll Mill to keep even distribution, and the level of distribution shall be measured by the F.O.G. (Fineness Of Grind) gage. |
| 6. Paste Filtering |
| The filtering shall be made to remove foreign substance and to keep stable viscosity (liquidity) of milled paste. |
7. Shipment Inspection: Inspection for basic property of matter and characteristics required by customer
|
| The test for basic property of matter and characteristics shall be made before shipment (packaging) of completed paste. The shipment shall be made as packaged after completed inspection of viscosity (viscosity character), level of solid powder and F.O.G. |
